Thin plug-in valve at the bottom of the warehouse

Product Overview:

Thin plug valve, also known as manual knife type gate valve, is a valve in which the gate and seat are always in close contact and sealed. Its principle is that the gate has a circular opening of the same diameter, and the opening and closing of the gate allows the circular opening on the gate to completely detach and match the diameter. The advantage of this valve is that the valve body has no grooves, the medium will not get stuck or blocked, and it has full diameter flow characteristics. Its sealing structure can be divided into soft sealing and hard sealing structures. Plug in valves are mainly used in water filtration processes in urban water plants and sewage treatment plants, such as flap valve type filters, closed tank backwash filters, air-water backwash filters, as well as aerated biological filters and other similar processes. The drain valve body switch of the plug valve used for backwashing and drainage in the filter tank is flipped from 00 to 900.

The manual plug-in valve is often used in conjunction with the discharge device or silo, with a diameter that matches the feeding port of the discharge device. It is easy to install with a flange connection, and there are two types of inlet and outlet ports: square and circular. There are dozens of specifications according to the diameter, and it is widely used in industries such as metallurgy, carbon, chemical, and building materials. It has the advantages of simple and compact structure, reasonable design, reliable sealing, lightweight and flexible operation, small volume, smooth channel, low resistance, easy installation, and easy disassembly. The thin plug-in valve can be installed horizontally or vertically, and has the characteristics of anti wear and automatic compensation, long service life, etc. During normal use, each transmission part should be regularly inspected and lubricated for maintenance.

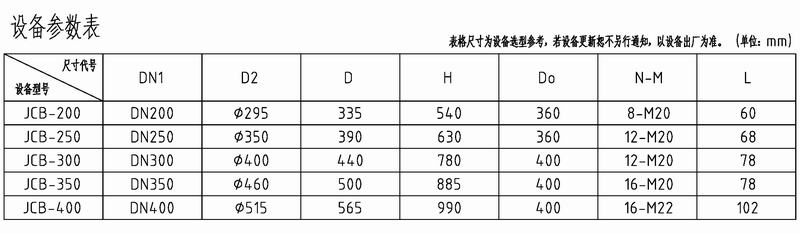

Equipment parameters for manual plug-in valve:
